Contact USAustralian Aluminum Honeycomb Panel for Lightweight Facades High-Strength Cladding Systems
30+ Years Expertise in Panel Manufacturing
We have decades of experience in honeycomb panel design and production.
We understand that every project is unique, which is why we are best suited to offer you and your team the knowledge, support and manufacturing experience to produce the highest quality panel at competitive pricing.

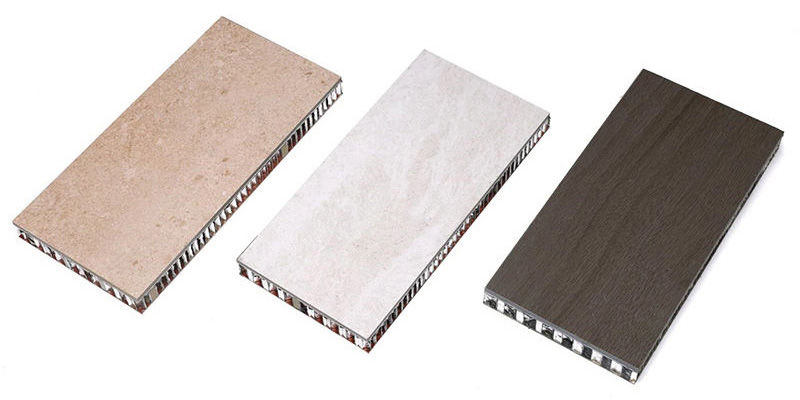

Aluminium Honeycomb Panels (AHP) combine lightweight design with exceptional strength, inspired by the natural geometry of honeycombs. Their hexagonal core evenly distributes force, making them highly durable against extreme conditions.
Crafted with aluminium structures and porcelain finishes, they offer a perfect balance of durability, functionality, and modern aesthetics.

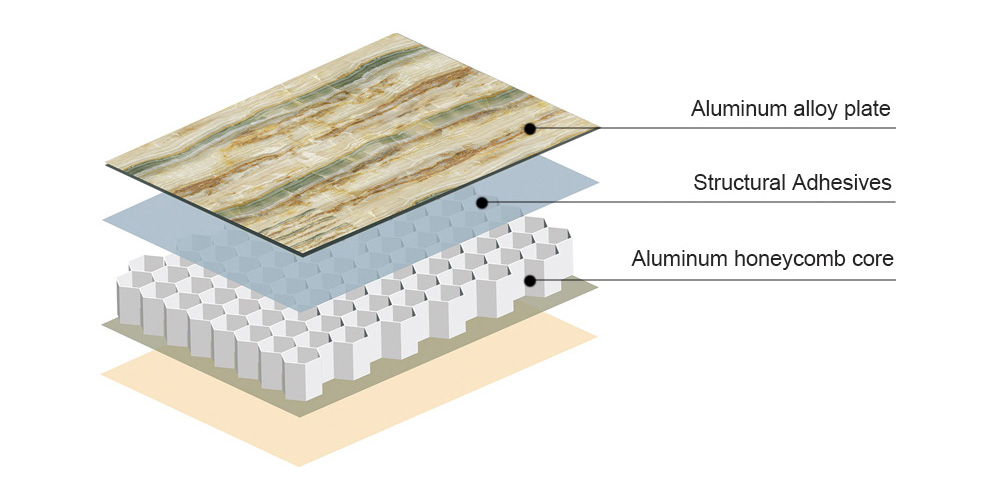

The aluminum honeycomb version uses high-strength 3003 aluminum alloy as the panel, and high-density aluminum honeycomb core as the core material. The conventional thickness of the panel is 0.8mm, 1.0mm. The overall thickness of the board is 10mm,15mm, 25mm. Other specifications, structures and sizes can be designed and manufactured according to needs to meet the needs of various purposes.
| Product name | Aluminum Honeycomb |
| Raw materials | Aluminum, Steel, Stainless steel, Metal |
| Function | Anti-Static, Antibacterial, Fireproof, Mould-Proof |
| Panel Size (mm) | Cutomized |
| Thickness(mm) | 10mm,15mm, 25mm |
| Surface treatment | Bushed, PVDF painting,Film coated, Roll coated, Polyster oil-painting, Fluorocarbon oilpainting |
| Delivery time | 15 - 25 Days |

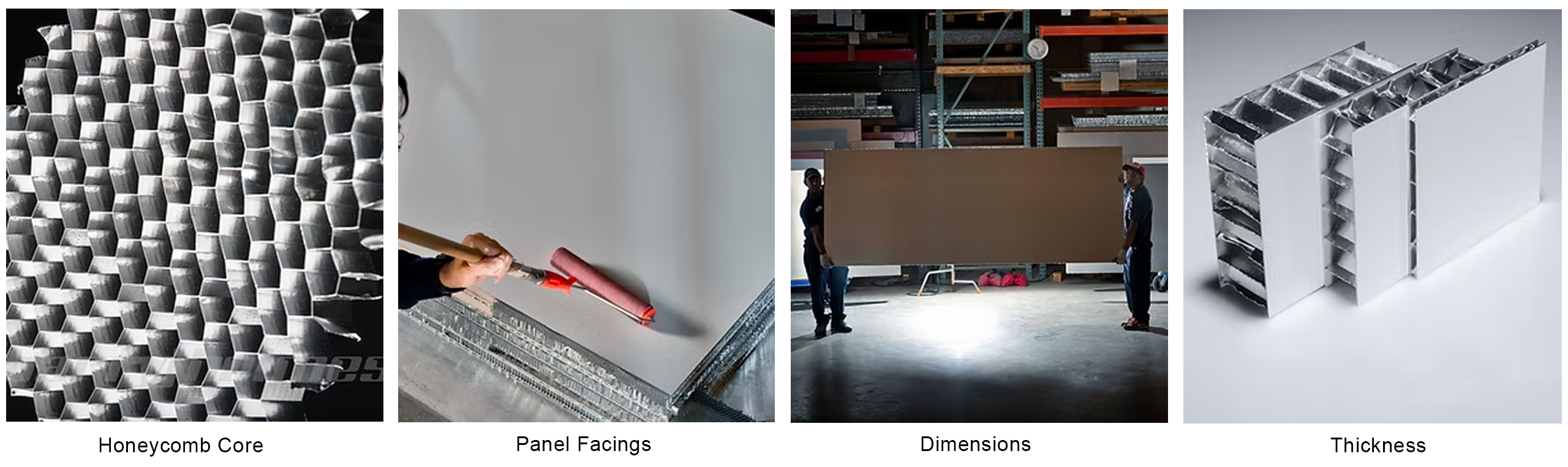

Aluminum Honeycomb Panel Components
● Honeycomb Core

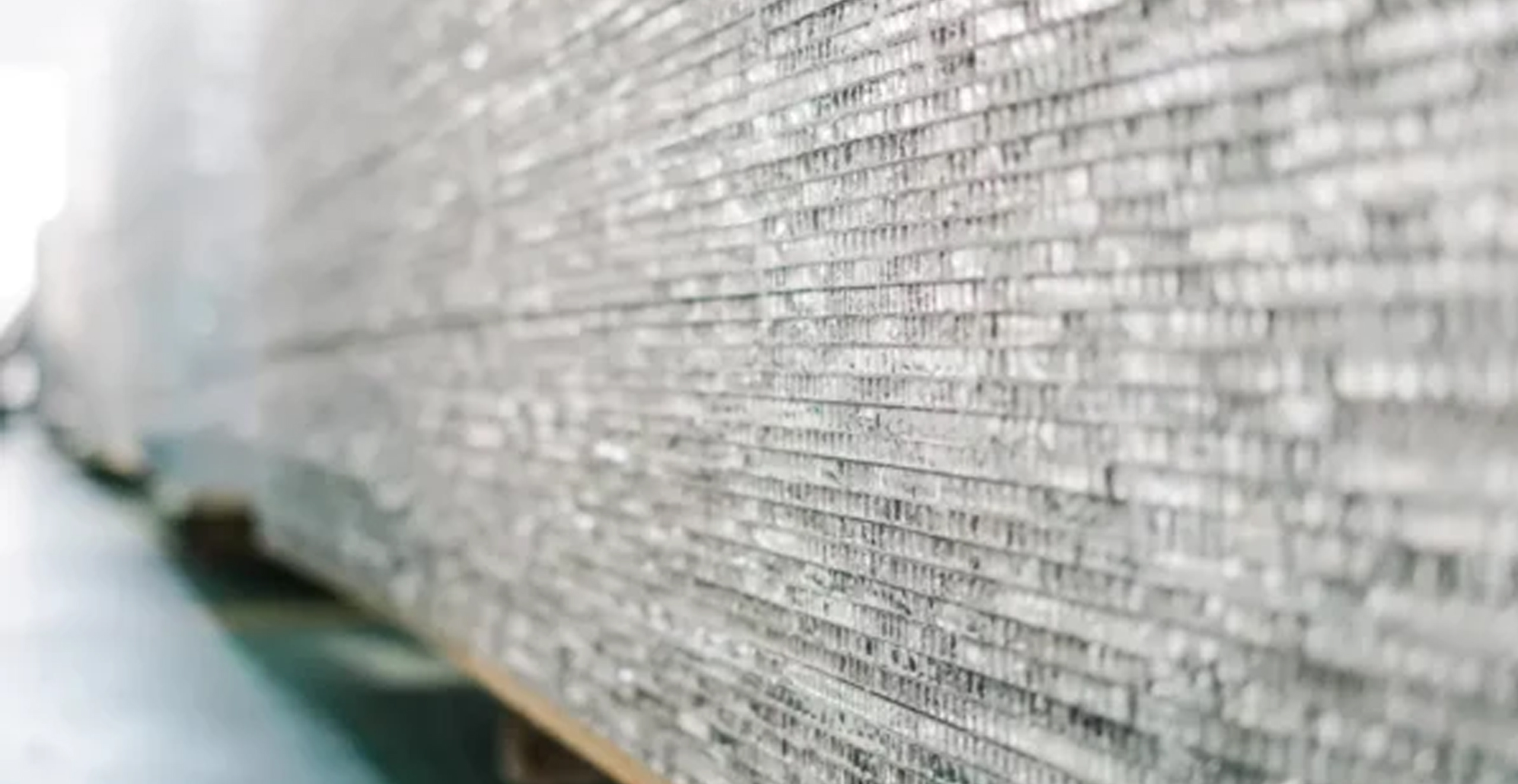

The aluminum honeycomb core is expanded into a hexagonal pattern, providing excellent compressive and shear strength. The core comes in different cell sizes depending on the strength and weight needs for your project.
● Panel Facings
Available in a variety of finishes and thickness, the panel facings are bonded to the core with a high-performance adhesive. This offer tensile strength and stiffness to the panel.
● Dimensions
Standard sizing starts at 48"X96". Jayminton has the ability to create panels of all sizes and strengths.
● Thickness
Panel thickness is determined by the measurement of the facings combined with the thickness of the core.
● Cladding

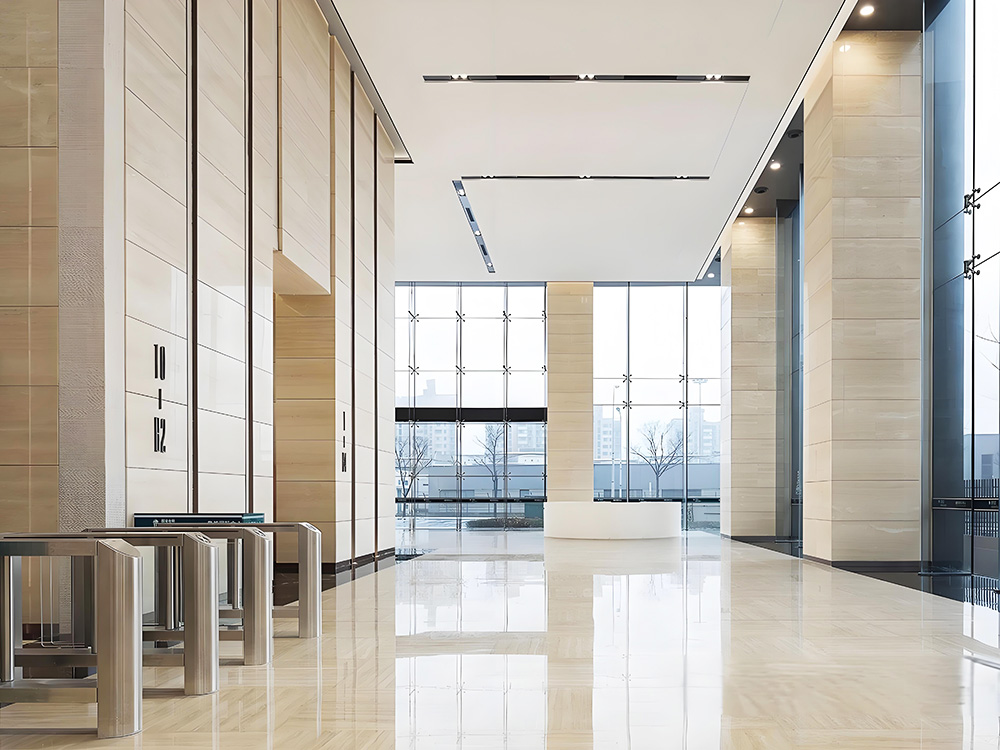

AHPs deliver smooth, seamless building surfaces with minimal joints, bringing architectural visions to life with precision.
Their ease of installation reduces complexity while ensuring a clean, modern finish.
● Fin Structure

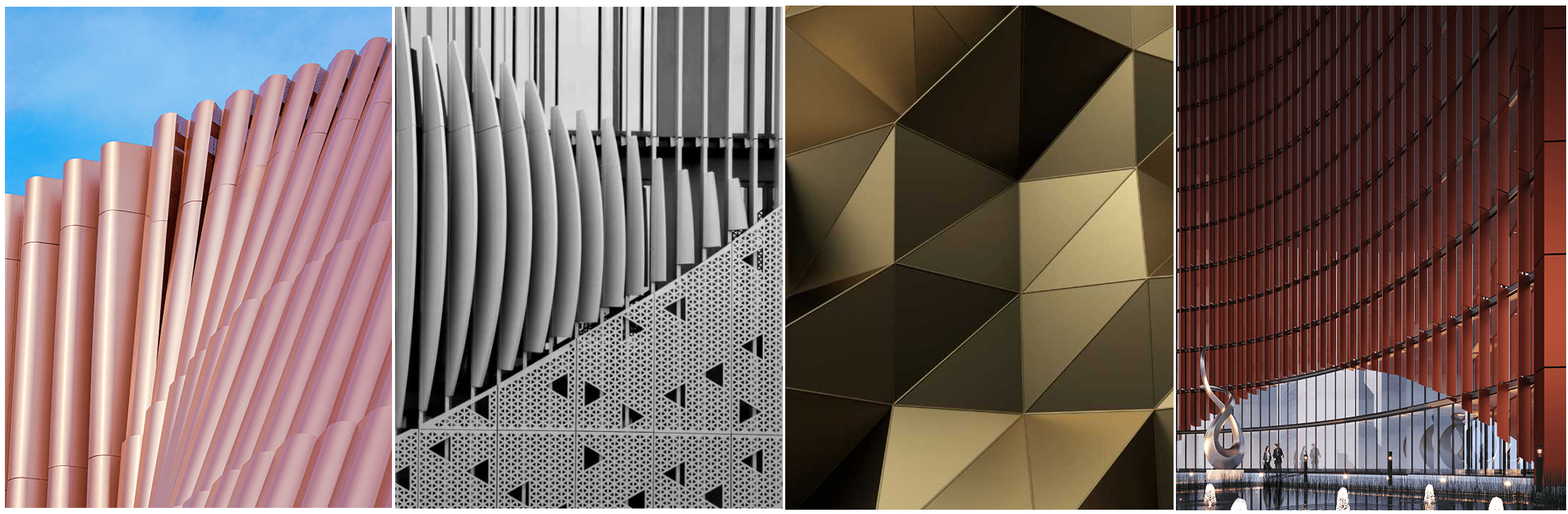

The AHP Fin Façade offers striking decorative fins that reduce heat and light penetration while enhancing the building's aesthetic. Prefabricated in the factory, these panels simplify installation and ensure consistent quality.
Adaptive Versatility
AHPs are versatile across industries: from buildings and interiors to manufacturing and transportation.

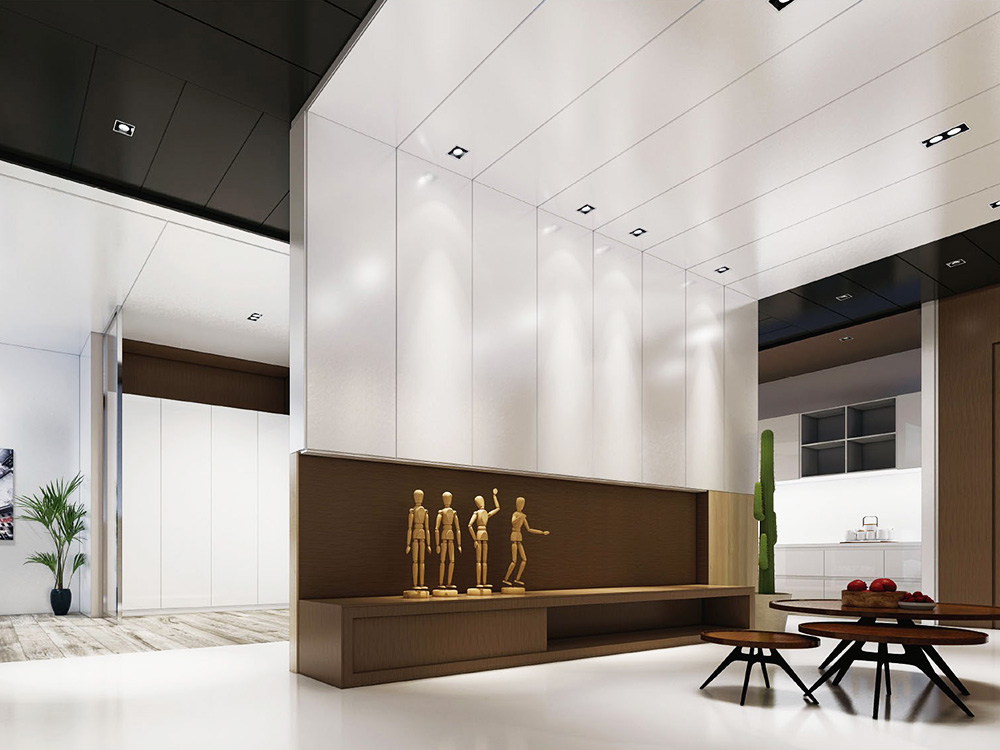

Their rigid yet lightweight structure makes them ideal for cladding, ceilings, canopies, and decorative finishes, while their strength, durability, and resistance to environmental impacts ensure reliable performance in platforms, fixtures, vehicles, and even aircraft.
Certified Non-Combustible
Meets AS1530.1 standards for fire safety.
Benefits of ReynoArch Aluminium Honeycomb Panel
● Fire Resistant: The panel is non-combustible, non-melting and not flammable. It has a fire rating FR Grade A2+. The honeycomb sheet is hexagonal in design and prevents the rapid spread of fire.
● Lightweight The honeycomb sheet has a hollow core, where the aluminium skin is attached to its hexagonal body. The panel’s low density makes it light and useful for aerospace engineering, metro coaches, theatres, and other applications.
● High Efficiency: The honeycomb core is hexagonal and connects to the aluminium skin at the top and bottom, creating an I-beam structure. This makes the panel strong and resistant to high-impact stress.
● 100% Recyclable: The Aluminium Honeycomb Panels alloy is 100% recyclable and reusable
● Easy Installation: The lightweight and thin panels can be used as wall panels or for other applications. They are attached with rivets and nuts.
Customization Options
We offer a range of customization options to tailor our aluminum honeycomb panels to your specific needs:
● Custom sizes and thicknesses
● Various facing materials, including aluminum, steel, and composites
● Integration of features like edge closeouts, inserts, and attachments
● CNC routing for complex shapes and cutouts
Company Introduction
Jayminton boasts over Three decades of specialization in manufacturing high-quality metal ceilings, facades, and architectural metalwork, solidifying its reputation as a trusted industry leader. With a portfolio spanning iconic projects like Singapore Changi Airport T2’s 70,000-square-foot "cloud-like" perforated aluminum ceiling, Hong Kong MTR Diamond Hill Station, and Sydney Metro stations, the company has demonstrated its ability to deliver complex, large-scale installations for high-profile clients. Established strategic partnerships with several internationally renowned brands, further enhancing its credibility and enabling it to access cutting-edge design trends.
