Contact USLaser Cut Metal Panel Installation Guide
PATTERNSWith a UV stable air and moisture barrier, our panels can be custom perforated to your specifications.

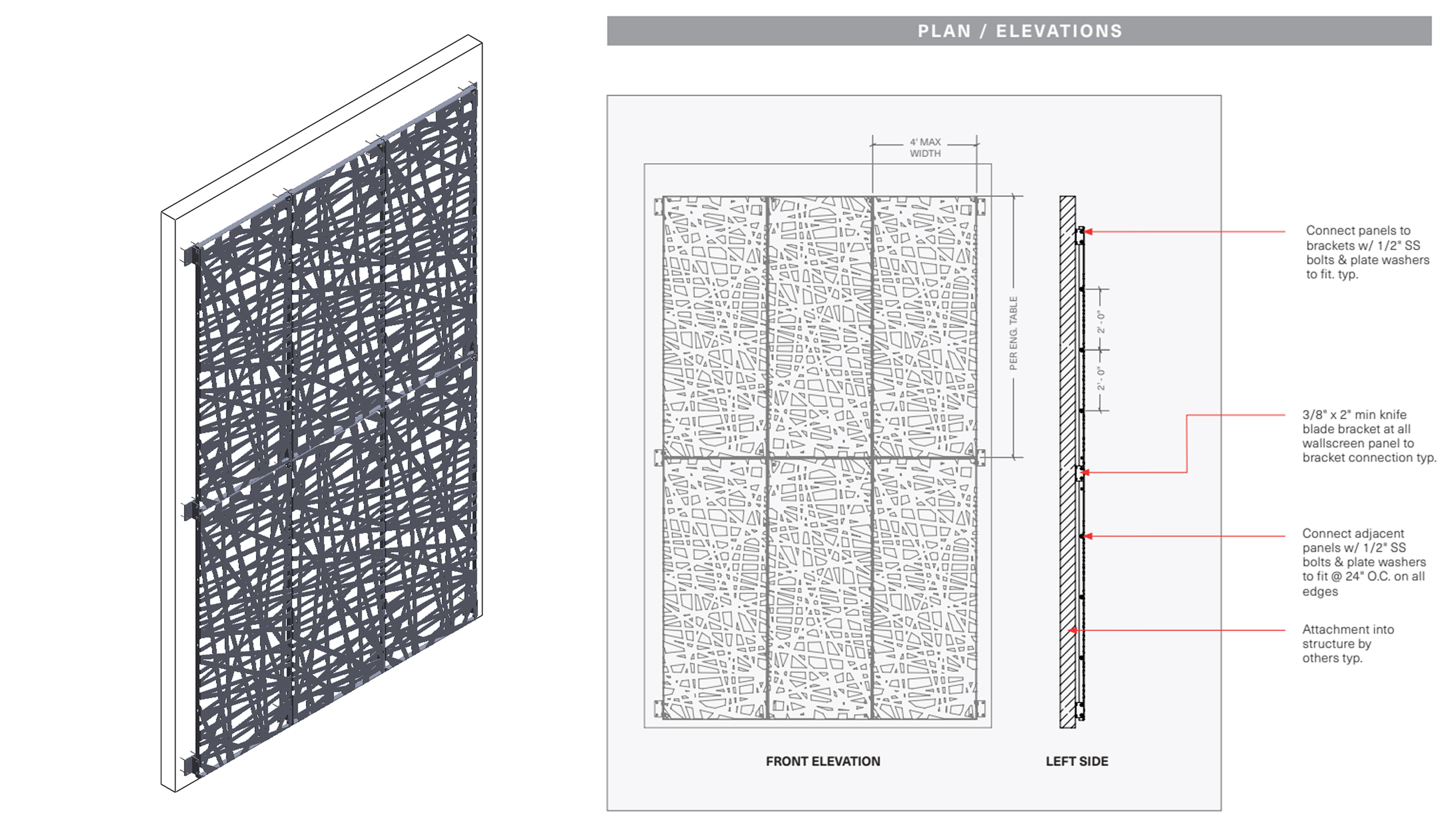

ENFOLD FACADE WALL/SCREEN SYSTEM
DESCRIPTION
• Wall/Screen Panels can be mounted in a modular configuration using standard knifeblade support brackets.
• Standard and custom patterns.
• Interior and exterior applications.
• Bracket plate can be concealed behind finish.
TYPICAL DETAILS

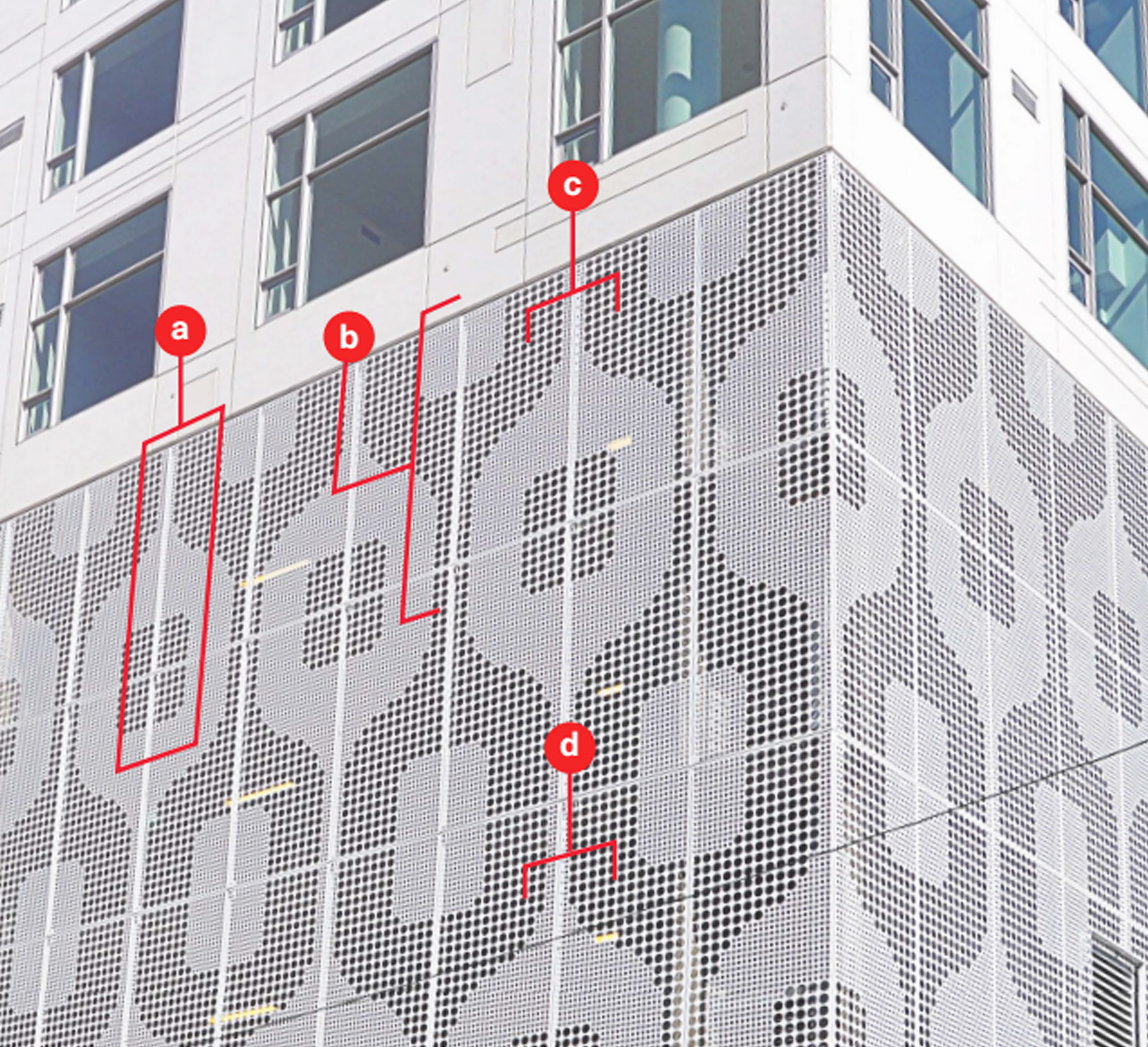

DETAIL KEY
a: Elevation Detail-wall/screen panel
b: Section Detail-wall/screen panel
c: Bracket Connection-horizontal section
d: Intersecting Panel Connection-horizontal section

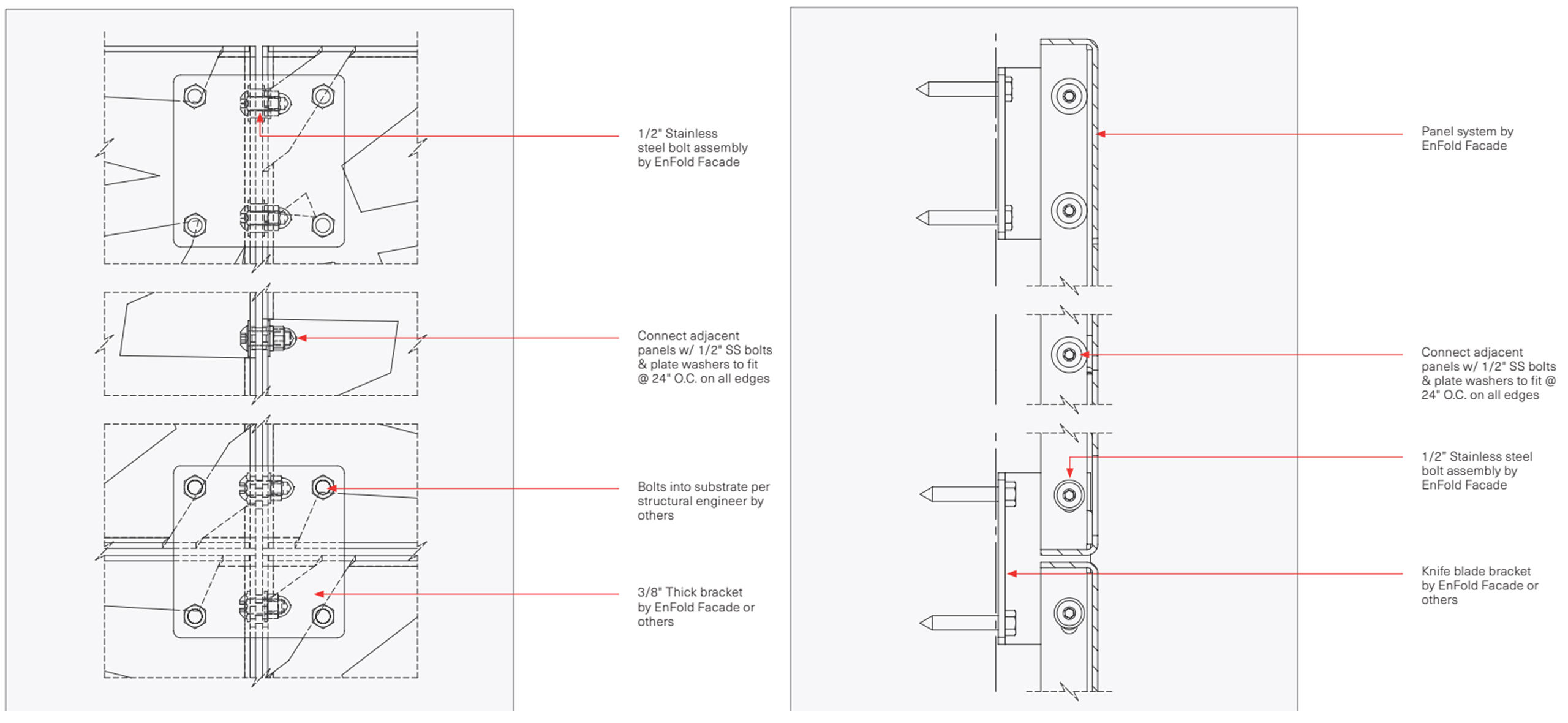

a: ELEVATION DETAIL : wall/screen panel
b: SECTION DETAIL : wall/screen panel

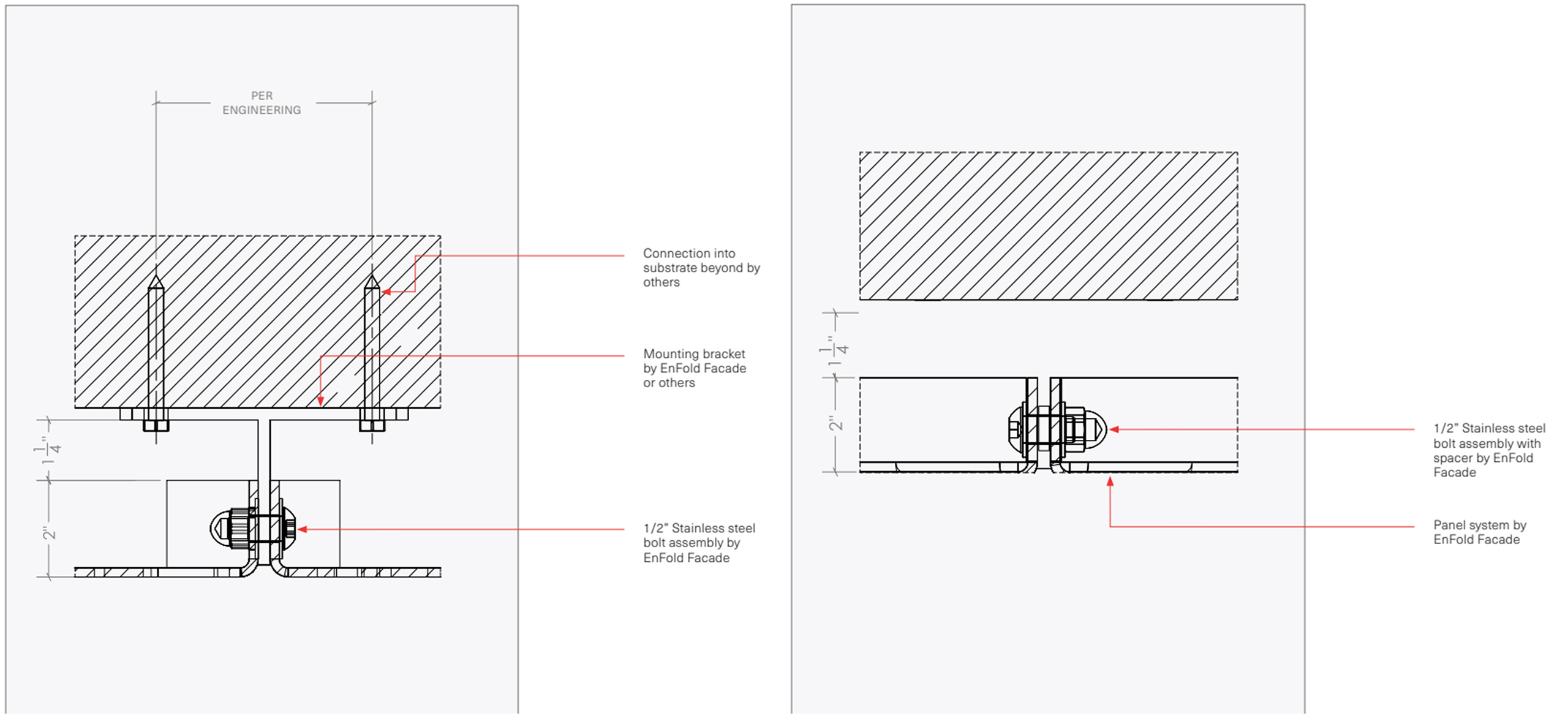

c: UPPER PANEL CONECTION : horizontal section
d: INTERSECTING PANEL : horizontal section

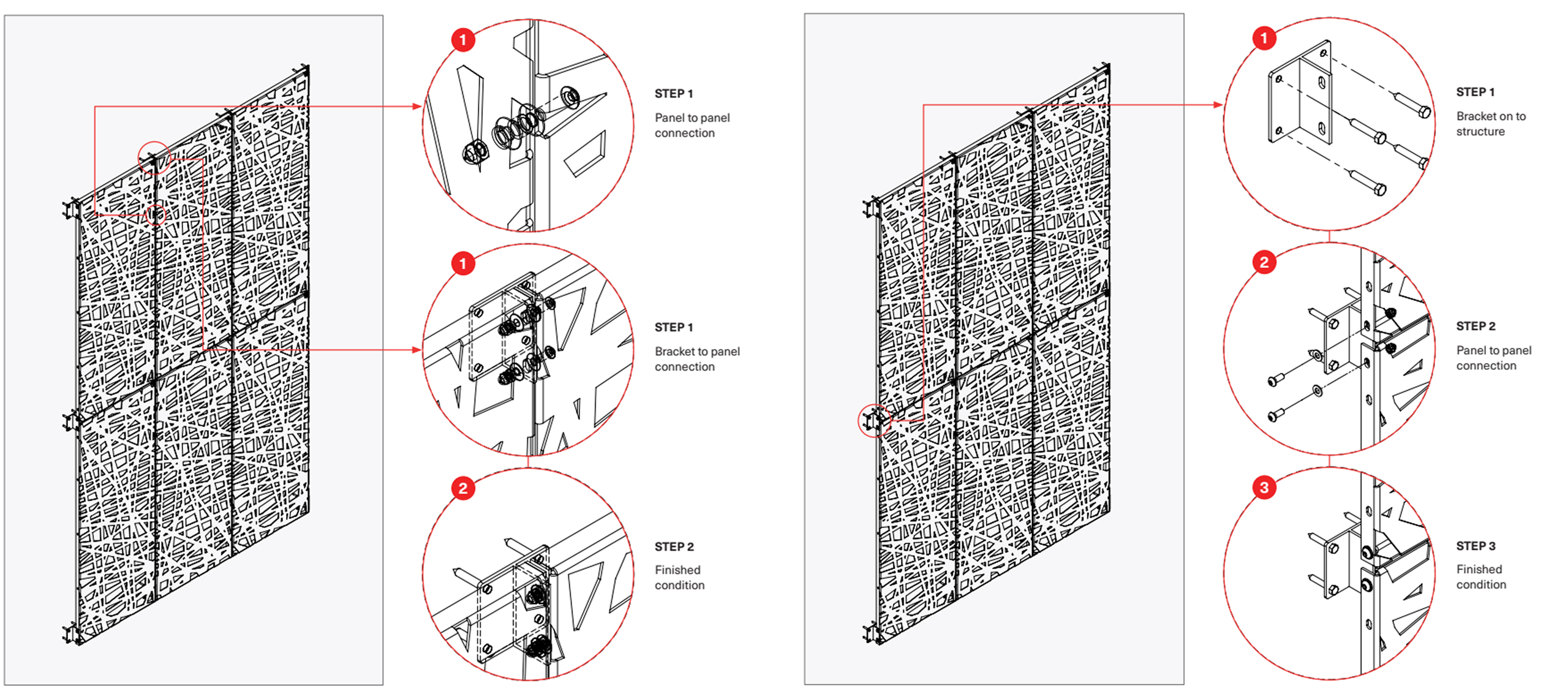

INSTALLATION SEQUENCE
