40mm Series 40x80mm Cover Two-Piece Aluminum Batten System for Screen Wall Ceiling Facade Garage Doors Fences
Product Overview
40mm Series
The 40mm Series now offers the lightest batten profile. Perfect for applications where weight is a key consideration — like garage doors, screening, facades, and ceilings — the 40mm Series helps to reduces weight without compromising on performance.
With three batten cover sizes and three base options, the 40mm Series is aligned with traditional timber batten sizes and is an ideal option when looking for a more durable and longer-lasting timber alternative.
Like all our products, the 40mm Series battens come pre-finished in your choice of our wide range of low-maintenance finishes, including our premium Super Durable powder coat finish.
| Product Name | Two-Piece Aluminum Batten |
| Brand Name | Jayminton |
| Material | Aluminum |
| Surface Finish | * Anodized (Color: Champagne Gold/Silver/Black/Bronze, etc.) * Powder-coated (Custom colors available, provide RAL or Pantone codes) * Electrophoretic Coating * Wood Grain Transfer * PVDF (Fluorocarbon) Coating |
| Type | 40x20mm Cover, 40x40mm Cover, 40x80 Cover, 40x65mm Radius Cover, 40x20mm Concave Cover, 40x25mm Convex Cover or Customized |
| Application | Ceilings & Soffits, Facades, Fencing & Gates, Garage Doors, Privacy Screenin, Pergola & Gazebos |

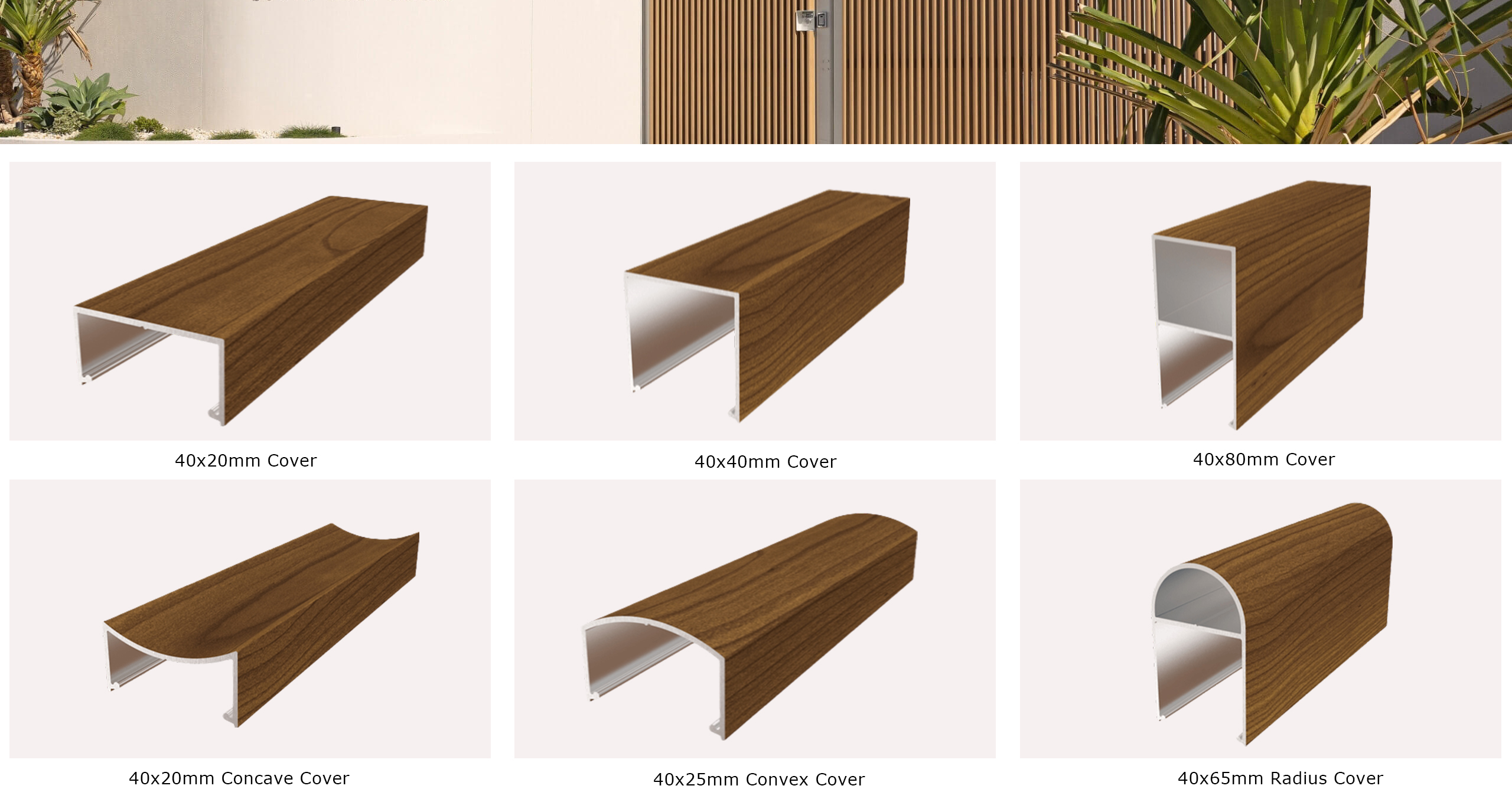

Profiles
40x20mm Cover, 40x40mm Cover, 40x80 Cover, 40x65mm Radius Cover, 40x20mm Concave Cover, 40x25mm Convex Cover or Customized
Colors
Anodized, Powder-coated, Electrophoretic Coating, Wood Grain Transfer, PVDF Coating or Customized
Certified Non-Combustible
Meets AS1530.1 standards for fire safety.

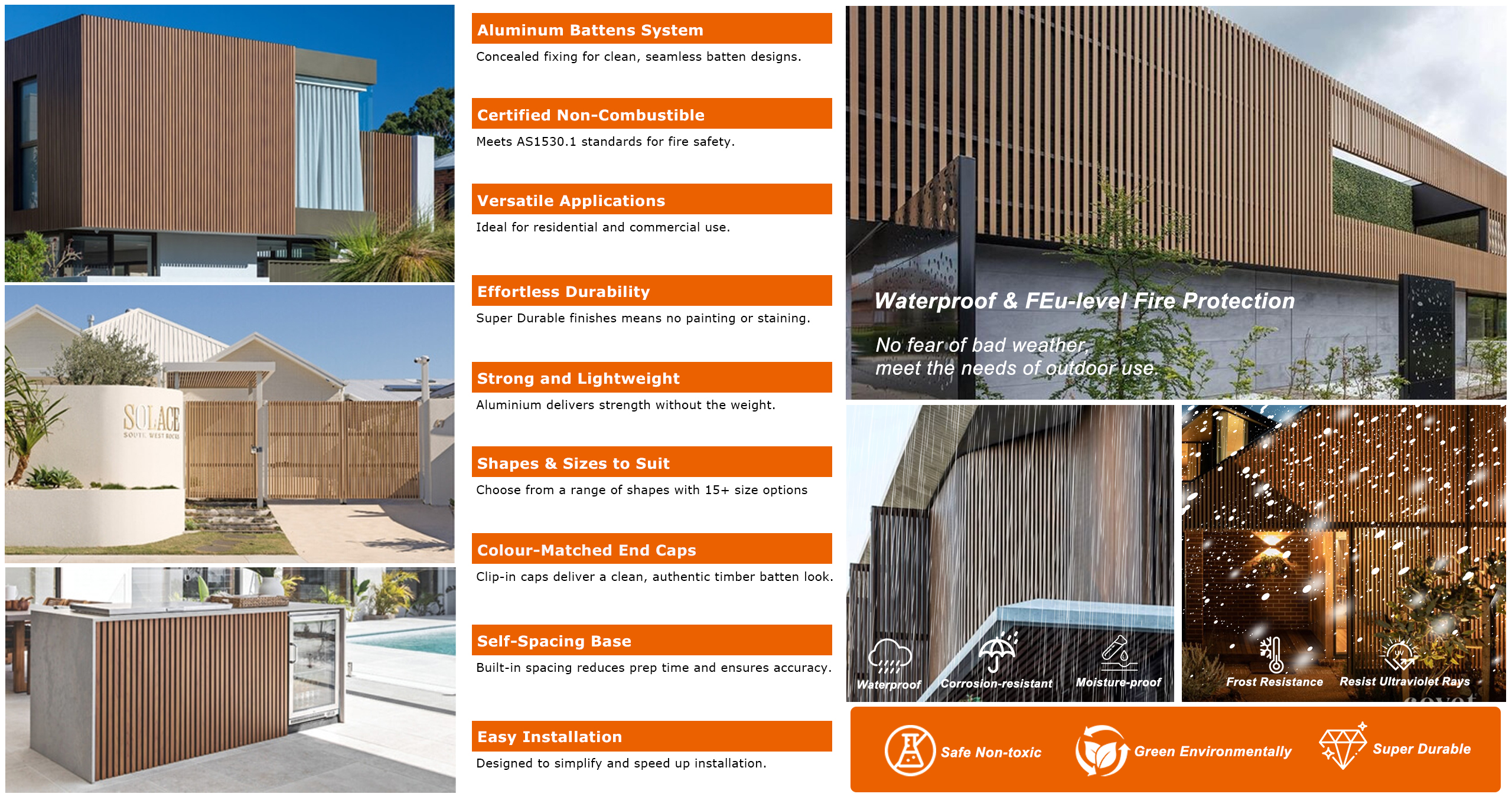

Features
Aluminum Battens System-Concealed fixing for clean, seamless batten designs.
Certified Non-Combustible-Meets AS1530.1 standards for fire safety.
Versatile Applications-Ideal for residential and commercial use.
Battens Spacing Base-Built-in spacing reduces prep time and ensures accuracy.
Easy Installation-Designed to simplify and speed up installation.
Effortless Durability-Super Durable finishes means no painting or staining - ever!
Shapes & Sizes to Suit-Choose from a range of shapes with 15+ size options
Strong and Lightweight-Aluminium delivers strength without the weight.

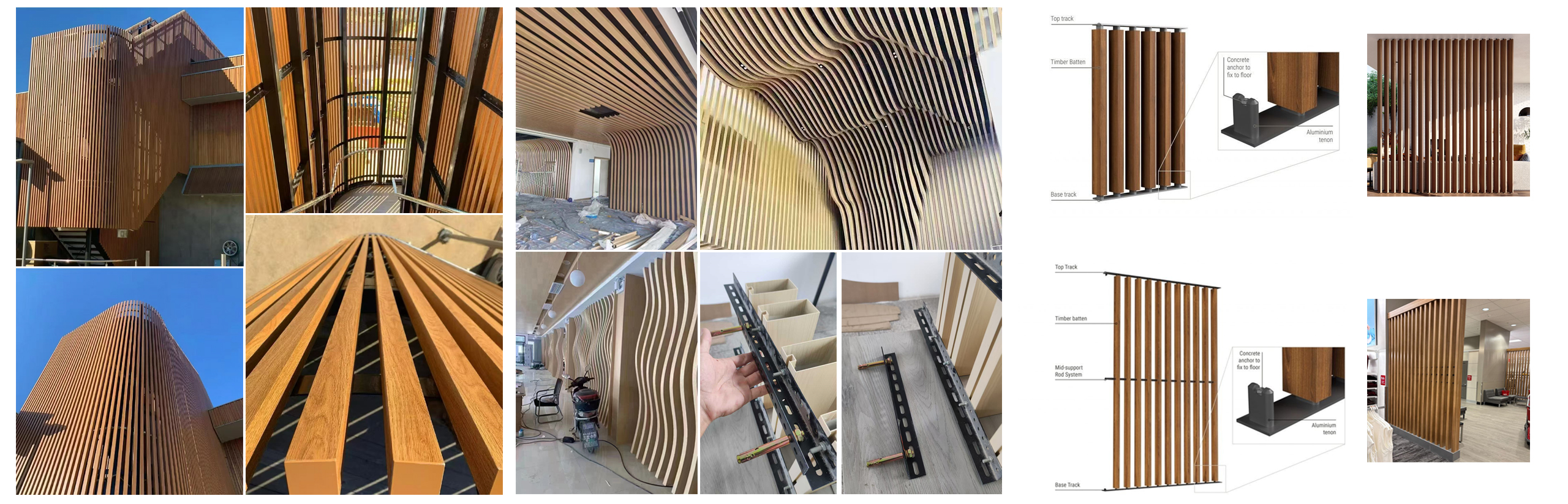

Gallery
Easy to install

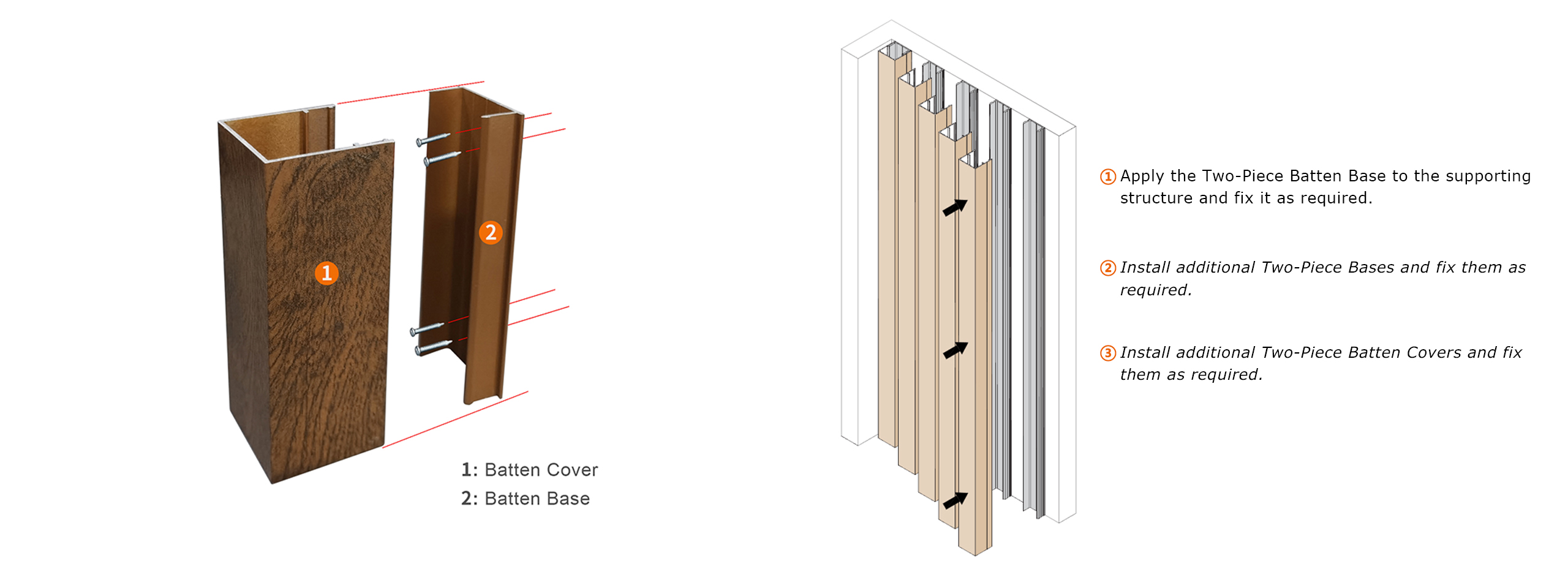

Two-piece Aluminium Batten System Installation
One-piece Aluminium Batten System Installation
