America Acoustic Open-Cell Metal Ceiling System for Commercial and Architectural Spaces

Details
parameter

America Acoustic Open-Cell Metal Ceiling System for Commercial and Architectural Spaces

● Open Grid Structure – Improves airflow and visual openness

● Modular System – Flexible layout and easy panel access

● Metal Construction – Durable, stable, and corrosion-resistant

● Low Maintenance – Easy cleaning, long service life

● Service Integration – Compatible with lighting, HVAC, and fire systems

Whats/Wechat:+86-18126631618

22222


The Open-cell ceiling is always up-to-date and decorative and has a sophisticated appearance. The double blade louvre is available in many colours, so a perfect match can be found with your project. Precise installation is guaranteed by the sharp edges of this ceiling.

✔ LED downlights can be integrated aesthetically in the ceiling.

✔ Technical building systems (such as air-conditioning units and sprinklers) can be integrated without any problem

✔ As an option, can also be installed in vestibules.

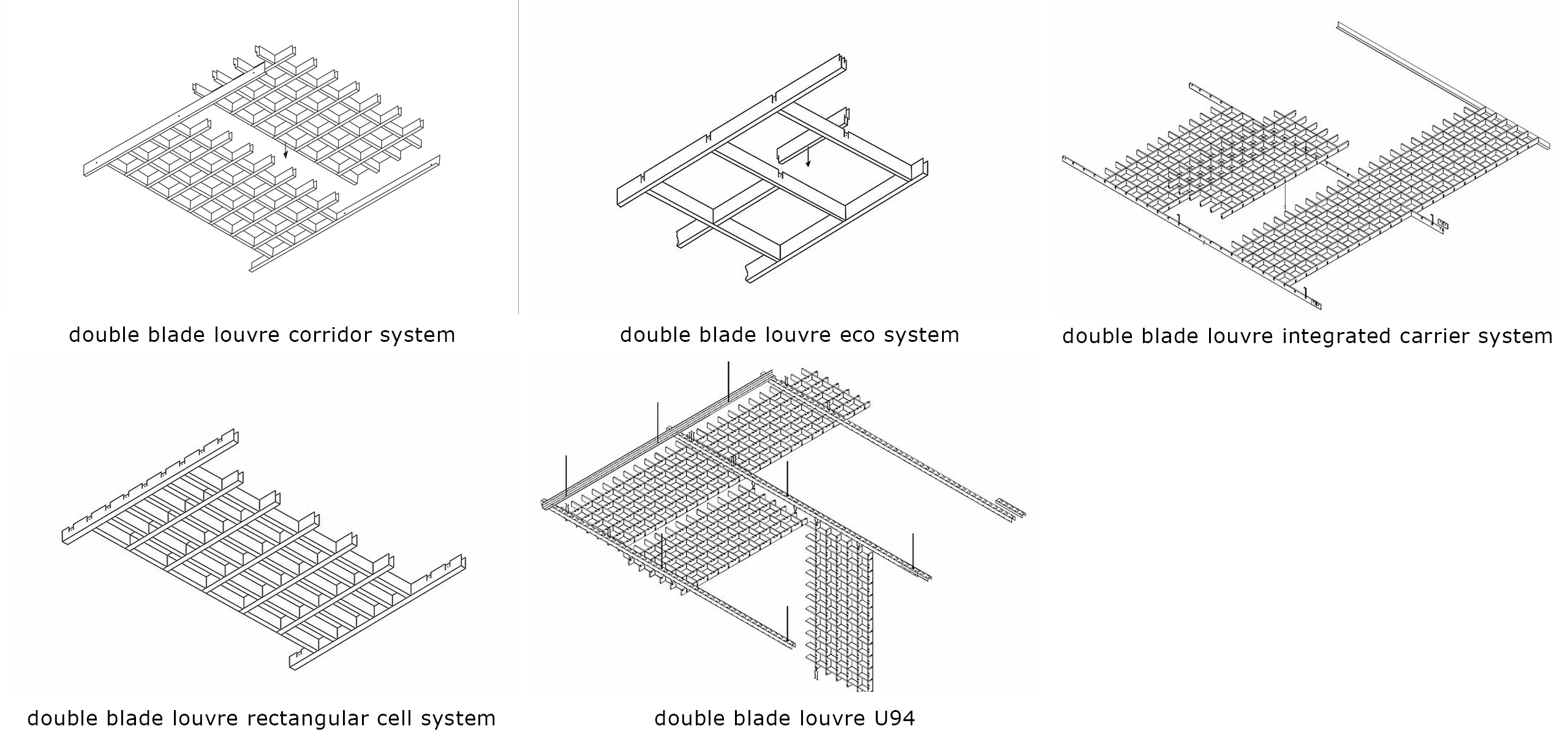

VARIANTS


TECHNICAL INFORMATION

Dimensions

Panels

600 x 600mm, 1200 x 600mm, 1250 x 625mm, 1500 x 750mm

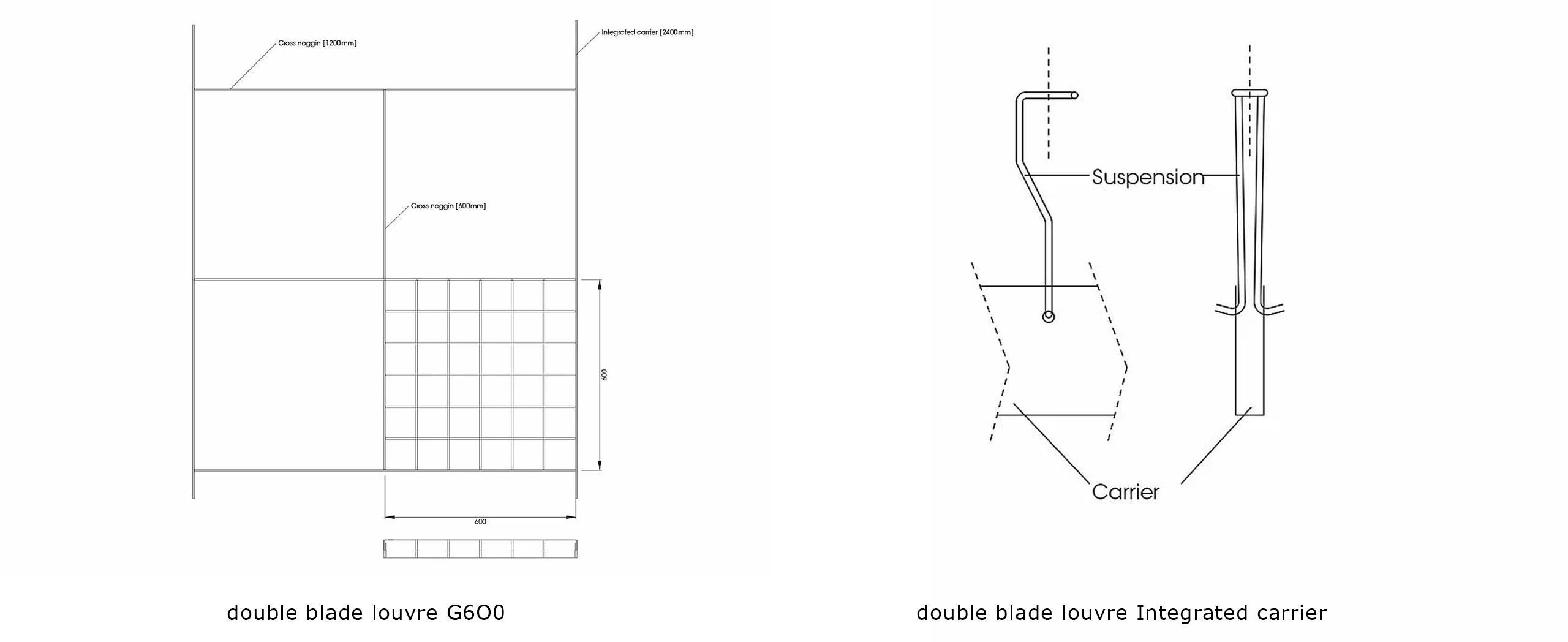

Louvre configuration

For integrated or U94 carrier rail:

Web width | Louvre height | Cell size (various versions are possible)

4 | 42 | 50/75/86/100/120/150/200mm

9 | 40 | 50/75/86/100/120/150/200mm

15 | 37 | 60/75/86/100/120/150/200mm

For T15 open:

Cell dimension: 100 x 100mm | 150 x 150mm

Height: 37 | 47 | 57 | 77mm

Web width: 15mm

For ECO:

Height: 77 | 100mm

Width: 15mm

For Rectangular cells:

Cell dimension: 50 x 100mm | 75 x 100mm | 85.71 x 171.43mm | 150 x 300mm

Height: 40mm

Material and surface

Aluminium. Surface strip-painted

Louvre colour: white, black, RAL 9006, natural anodised. Other colours on request

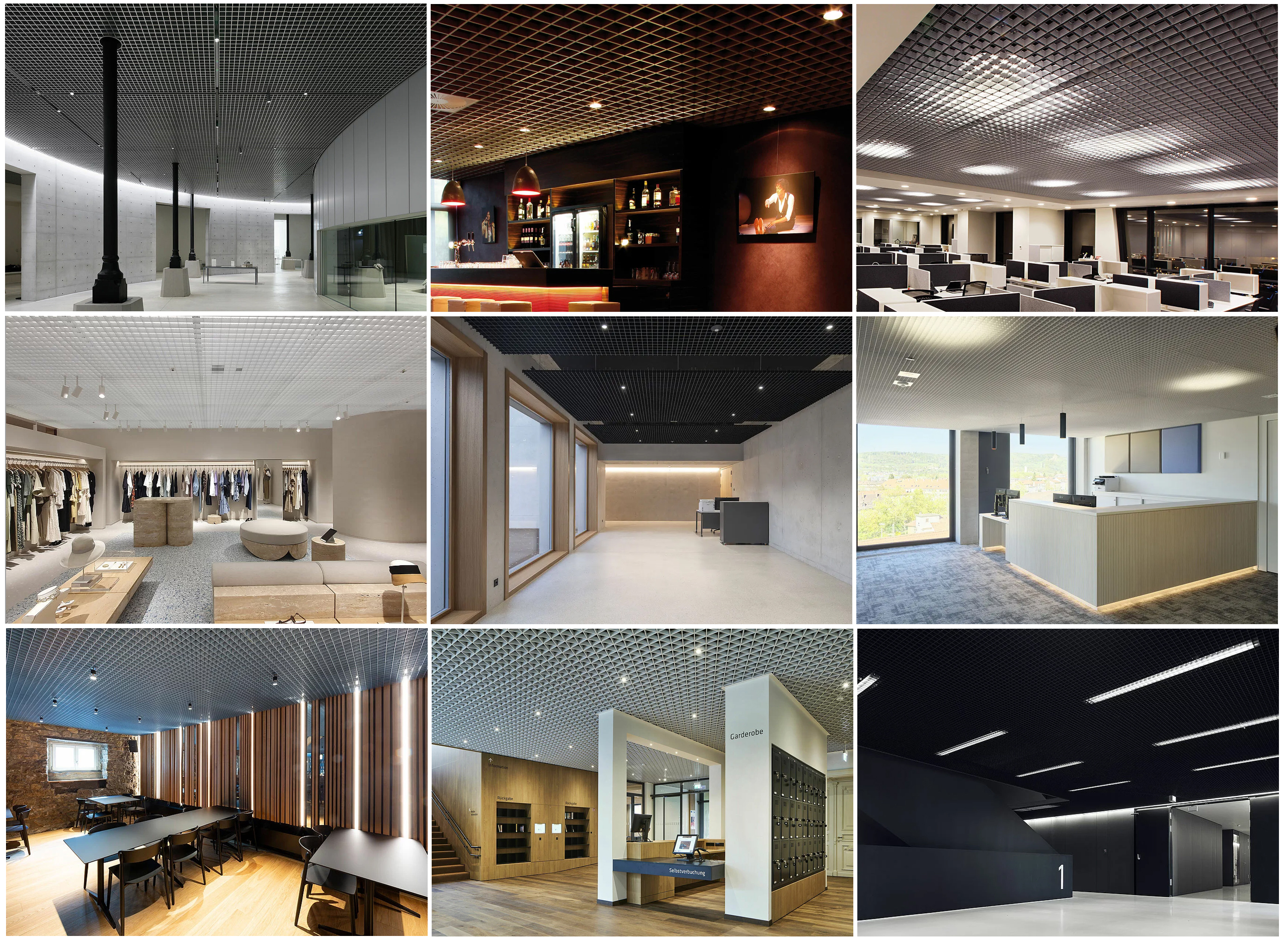

OPEN-CELL CEILING GALLERY

◆ Offices and corporate interiors

◆ Retail and shopping centres

◆ Transport hubs and terminals

◆ Public and cultural buildings

◆ Education and healthcare facilities


Certified Non-Combustible

Meets AS1530.1 standards for fire safety.


Why Choose Our Open-Cell Ceiling?

◆ Clear architectural expression

◆ Functional and service-friendly system

◆ Designed for international commercial projects

◆ Balanced performance, durability, and aesthetics

Company Introduction

Jayminton boasts over Three decades of specialization in manufacturing high-quality metal ceilings, facades, and architectural metalwork, solidifying its reputation as a trusted industry leader. With a portfolio spanning iconic projects like Singapore Changi Airport T2’s 70,000-square-foot "cloud-like" perforated aluminum ceiling, Hong Kong MTR Diamond Hill Station, and Sydney Metro stations, the company has demonstrated its ability to deliver complex, large-scale installations for high-profile clients. Established strategic partnerships with several internationally renowned brands, further enhancing its credibility and enabling it to access cutting-edge design trends.
